Summarize Documents with LangChain and Pinecone

A brief guide to document summarization with LangChain LLM framework and Pinecone vector database.

In previous posts, I have talked extensively about LangChain embeddings, vector stores, and offered a detailed walkthrough of document summarization using Chroma, an open-source vector database. This time, I'll explore summarization with Pinecone, a fully managed alternative.

What is Pinecone?

LangChain is an open-source framework created to aid the development of applications leveraging the power of large language models (LLMs). It can be used for chatbots, text summarisation, data generation, code understanding, question answering, evaluation, and more. Pinecone, on the other hand, is a fully managed vector database, making it easy to build high-performance vector search applications without infrastructure hassles. Once you have generated the vector embeddings using a service like OpenAI Embeddings, you can store, manage and search through them in Pinecone to power semantic search, recommendations, anomaly detection, and other information retrieval use cases. See this post on LangChain Embeddings for a primer on embeddings and sample use cases.


Sign up for an account with Pinecone, or log in if you already have an account, and create an API key. Note the key and environment values.

Pinecone API key and environment
Pinecone API key and environment

From the docs, "an index is the highest-level organizational unit of vector data in Pinecone. It accepts and stores vectors, serves queries over the vectors it contains, and does other vector operations over its contents. Each index runs on at least one pod, which are pre-configured units of hardware for running a Pinecone service." With the free Starter plan, you can create one pod with enough resources to support 100K vectors with 1536-dimensional embeddings and metadata.

Pinecone indexes
Pinecone indexes

Click Create your first Index, provide the Index Name and Dimensions, select the Pod Type, and click Create Index.

Create a new Pinecone index
Create a new Pinecone index

The index will take a few seconds to initialize; once ready, you can use it in your LangChain app for vector embeddings.

Build a Streamlit App with LangChain and Pinecone

Streamlit is an open-source Python library that allows you to create and share interactive web apps and data visualisations in Python with ease. I'll use Streamlit to create a simple app that allows users to upload a document along with a few necessary parameters, and provides a concise summary as output. This app uses PyPDFLoader to load the PDF document, OpenAI to generate embeddings, Pinecone to store the vector embeddings, and LangChain to orchestrate the similarity search and document summarization.

Here's an excerpt from the file - you can find the complete source code on GitHub. Note that this is just proof-of-concept code; it has not been developed or optimized for production usage.

import os, tempfile, streamlit as st
from langchain_pinecone import PineconeVectorStore
from langchain_openai import OpenAIEmbeddings, ChatOpenAI
from langchain.chains.summarize import load_summarize_chain
from langchain_community.document_loaders import PyPDFLoader

# Streamlit app
st.subheader('Summarize Documents with LangChain & Pinecone')

# Sidebar for settings
with st.sidebar:
    openai_api_key = st.text_input("OpenAI API key", type="password")
    pinecone_api_key = st.text_input("Pinecone API key", type="password")
    pinecone_index = st.text_input("Pinecone index name")
source_doc = st.file_uploader("Source document", type="pdf")

# Set environment variables for API keys
os.environ['OPENAI_API_KEY'] = openai_api_key
os.environ['PINECONE_API_KEY'] = pinecone_api_key

if st.button("Summarize"):
    # Validate inputs
    if not openai_api_key or not pinecone_api_key or not pinecone_index or not source_doc:
        st.warning(f"Please upload the document and provide the missing fields.")
            with st.spinner("Please wait..."):
                # Save uploaded file temporarily to disk, load and split the file into pages, delete temp file
                with tempfile.NamedTemporaryFile(delete=False) as tmp_file:
                loader = PyPDFLoader(
                pages = loader.load_and_split()
                # Create embeddings for the pages and insert into Pinecone vector database
                embeddings = OpenAIEmbeddings(openai_api_key=openai_api_key)
                vectorstore = PineconeVectorStore.from_documents(pages, embeddings, index_name=pinecone_index)

                # Initialize the ChatOpenAI module, load and run the summarize chain
                llm = ChatOpenAI(temperature=0, openai_api_key=openai_api_key)
                chain = load_summarize_chain(llm, chain_type="stuff")
                search = vectorstore.similarity_search(" ")
                summary =, question="Write a concise summary within 200 words.")
        except Exception as e:
            st.error(f"An error occurred: {e}")

Deploy the Streamlit App on Railway

Railway is a modern app hosting platform that makes it easy to deploy production-ready apps quickly. Sign up for an account using GitHub, and click Authorize Railway App when redirected. Review and agree to Railway's Terms of Service and Fair Use Policy if prompted. Launch the Pinecone one-click starter template (or click the button below) to deploy the app instantly on Railway.

Deploy on Railway

This template actually deploys two services - one for document summarization, and the other for question-answering. For each, you'll be given an opportunity to change the default repository name and set it private, if you'd like. Accept the defaults and click Deploy; the deployment will kick off immediately.

Deploy Pinecone apps using one-click template on Railway
Deploy Pinecone apps using one-click template on Railway

Once the deployment completes, the Streamlit apps will be available at default domains - launch each URL to access the respective app. If you are interested in setting up a custom domain, I covered it at length in a previous post - see the final section here.

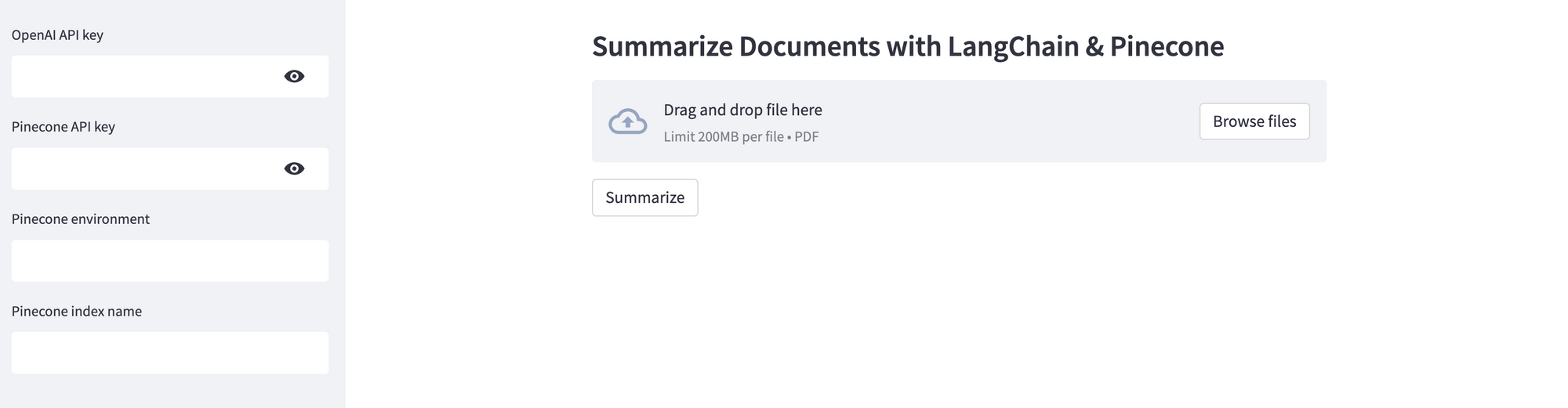

Summarize documents with LangChain and Pinecone

Provide the OpenAI and Pinecone API keys, the Pinecone environment and index name, upload the source document to be summarized, and click Summarize. In the example below, I'll use the Google Cloud white paper on delivering software securely. Assuming your keys are valid, the summary will be displayed in just a few seconds. If you don't have an OpenAI API key, you can get it here.

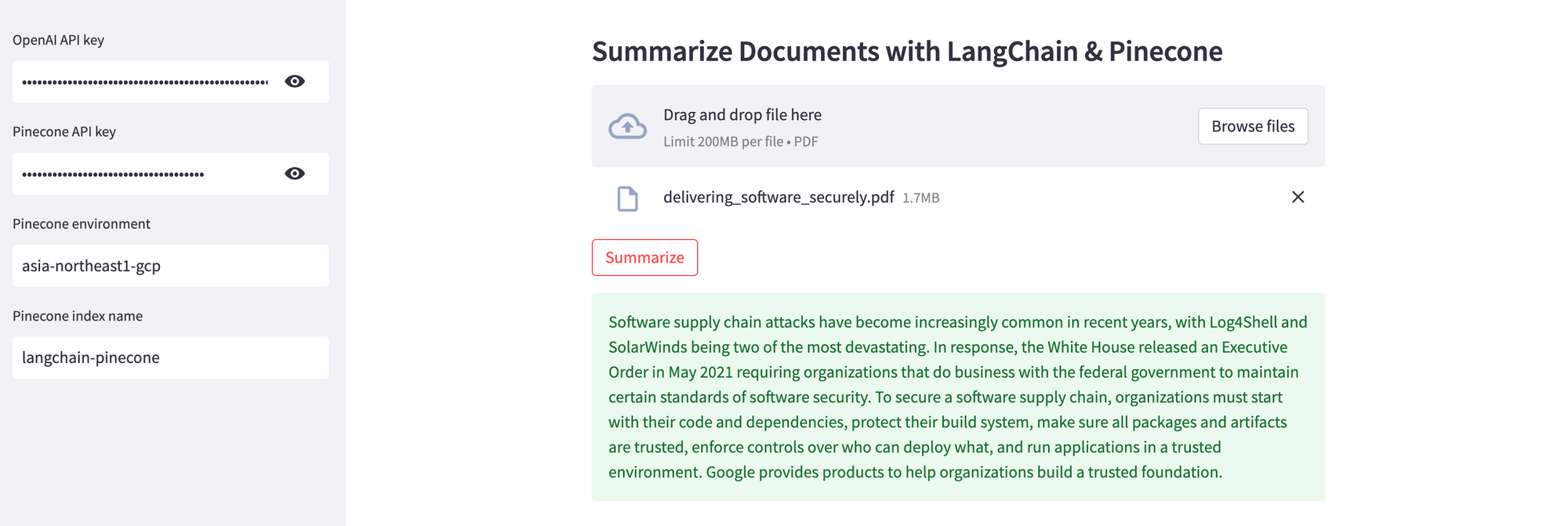

Sample document summary using LangChain and Pinecone
Sample document summary using LangChain and Pinecone

Pinecone is an easy yet highly scalable vector database for your semantic search and information retrieval use cases. And I hope this tutorial showed you just that. Next up, generative question-answering using LangChain and Pinecone.
